Product

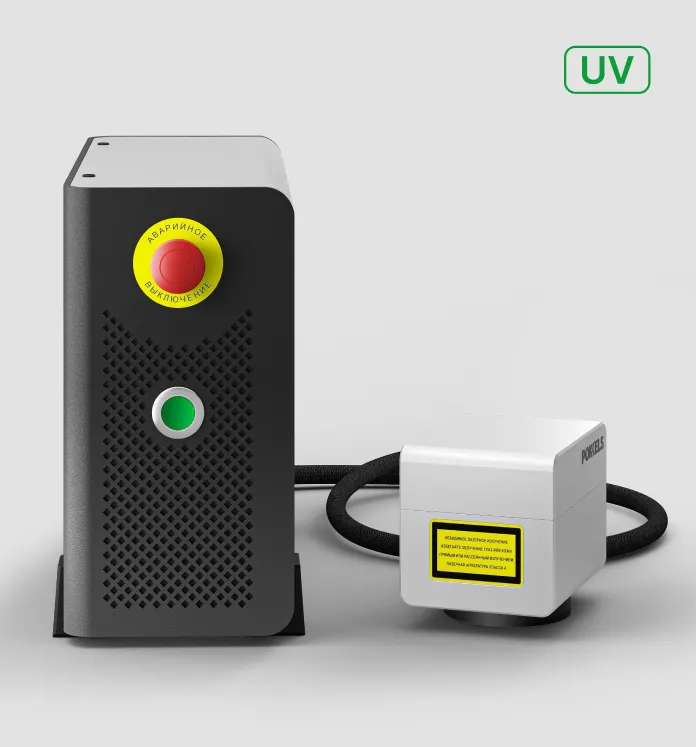

P-Mark DM UV
P-Mark DM UV delivers high contrast and excellent code quality with minimal thermal impact.
Suitable for marking plastics, films, glass, ceramics, medical products, and electronic components.
Laser lifetime — up to 20,000 hours.
Marking Speed — Up to 8 Codes per Second
Achieve the perfect balance between productivity and precision — up to 8 codes per second without compromising sharpness or clarity.
Fast Service and Readily Available Parts
We ensure dependable lead times, steady availability of spare parts and consumables, and responsive, transparent technical support.
Extended 24-Month Warranty
Enjoy peace of mind with a two-year warranty. Throughout the entire period, you’ll receive priority service and comprehensive technical assistance.
Tailored Modernization
We adapt your equipment by offering enhanced dust and moisture protection, water cooling, and other customized engineering upgrades.
Parallel Marking Capability
Our in-house–developed controller can manage multiple laser heads at once, enabling synchronized marking on every product.
The Right Laser for Every Application
Fiber, UV, and CO2 laser systems designed for a wide range of products subject to marking and traceability requirements.
Smart Self-Diagnostics
An integrated diagnostic system continuously monitors performance and automatically detects potential issues.
Complete Process Control
Stay in command with remote operation and real-time monitoring of your marking systems.
| Emission Power | 10 W | 20 W | 30 W | 40 W | |
| Throughput | 2 units/s | 4 units/s | 6 units/s | 8 units/s | |
| Source Lifespan | 20,000 hours | ||||
| Wavelength | 355 nm | ||||
| Laser Type | Pulsed | ||||
| Cooling Type | Air-Water | ||||
| Optical Processing Field | 100х100 | 200х200 | 350х350 | 500х500 | |
| Maximum Pulse Energy | 0.16 mJ | 0.25 mJ | 0.6 mJ | 0.8 mJ | |
| Software Resolution | 4800 dpi | ||||
| Control Interface | Ethernet TCP/IP | ||||
| Operating System | Embedded proprietary LaserNet system | ||||
| Network Parameters | 220-230 V, 50 Hz | ||||
| Dimensions | 550х450х250 mm | 750х450х350 mm | 850х550х350 mm | 850х650х450 mm | |
| Weight | 35 kg | 50 kg | 50 kg | 75 kg | |
| Power Consumption | 200 W | 400 W | 600 W | 800 W | |
| Materials Processed |
Carbon steel and other ferrous metals Titanium Stainless steel Copper and alloys Paper and cardboard Wood Metal cans Ceramics Leather Fabrics |
||||
| Delivery Set |
Enclosure with emitter Scanner head Controller Power cord Chiller |
||||
Have questions? Schedule a consultation and a demo.

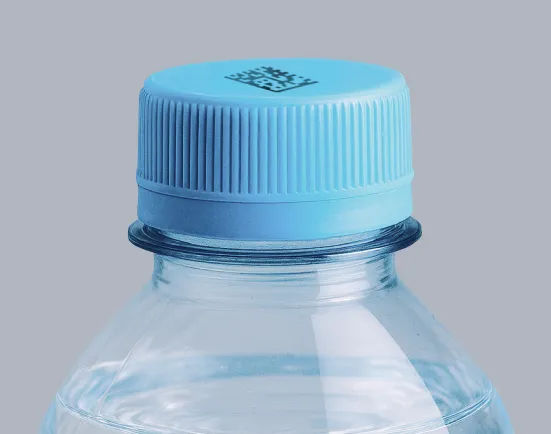

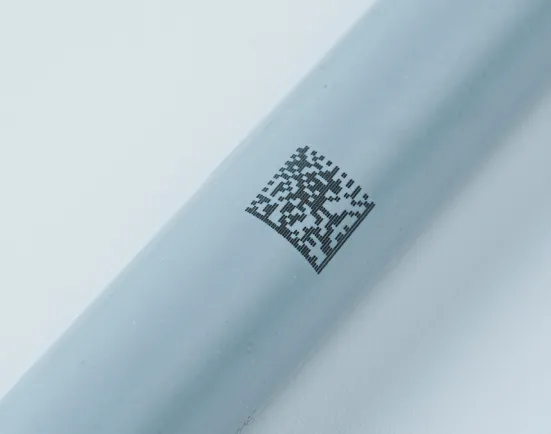

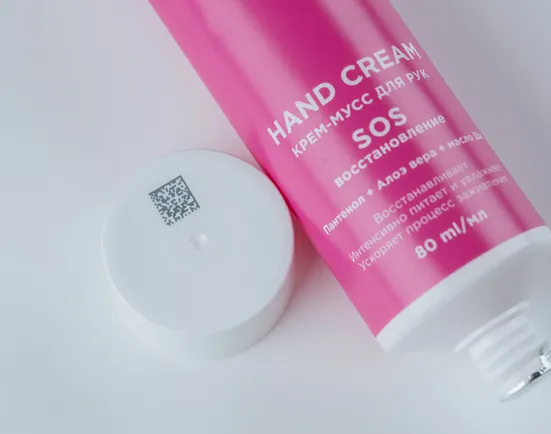

Application Samples
