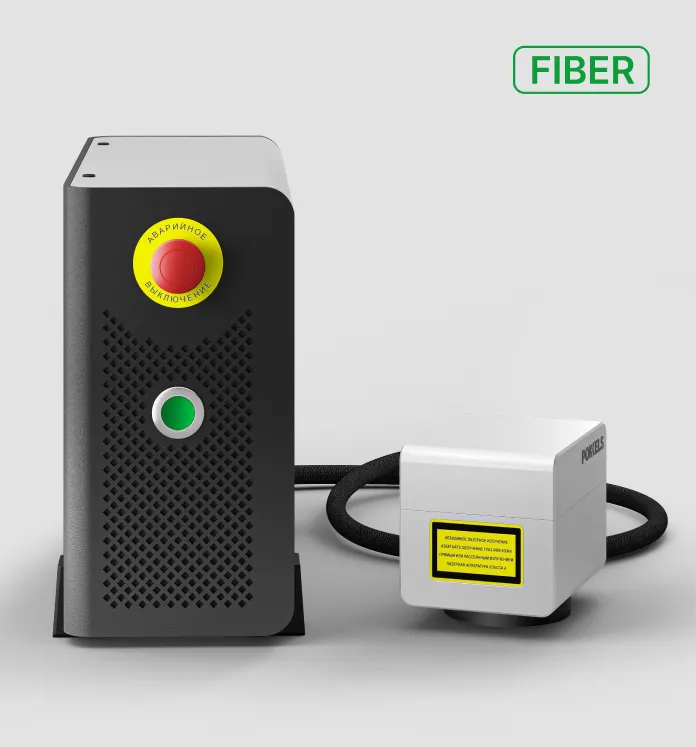

P-Mark DM Fiber
P-Mark DM Fiber is the best choice for heavy-duty operation and high production volumes.
It’s a universal solution for stable, high-contrast marking on metal, cardboard, and paper.
Offers performance of up to 30 codes per second and the longest service life among all laser types — up to 100,000 hours.
Customized Modernization
To match your real operating conditions, we offer additional dust and moisture protection, water cooling, and other engineering solutions.
Fast Repairs and Available Consumables
We guarantee reliable supply times, constant availability of spare parts, and transparent, efficient service.
Marking Speed — Up to 30 Codes/Sec
An optimal balance between performance and marking quality — up to 30 codes per second with no loss of sharpness or clarity.
Extended Warranty — 24 Months
The standard warranty is extended to two years. Throughout this period, you receive priority service and full technical support.
Parallel Marking
Our proprietary controller can operate multiple laser heads at once for synchronized marking on each unit.
A Laser for Every Task
Fiber, UV, and CO2 lasers designed for various types of products subject to marking requirements.
Autonomous Diagnostics
An integrated self-diagnostic system detects and reports potential malfunctions in the marking process.
Full Control
Enjoy the benefits of remote management and real-time monitoring of the marking process.
| Emission Power | 30 W | 50 W | 100 W | 300 W |
| Throughput | 3 units/s | 5 units/s | 10 units/s | 30 units/s |
| Source Lifespan | 100,000 hours | |||
| Wavelength | 1064 nm | |||
| Laser Type | Pulsed | |||
| Cooling Type | Air | Air-Water | ||
| Optical Processing Field | 100х100 | 200х200 | 350х350 | 500х500 |
| Software Resolution | 4800 dpi | |||
| Maximum Pulse Energy | 1 mJ | 2 mJ | ||
| Control Interface | Ethernet TCP/IP | |||
| Operating System | Embedded proprietary LaserNet system | |||
| Network Parameters | 220-230 V, 50 Hz | |||
| Dimensions | 550х450х250 mm | 750х450х350 mm | ||
| Weight | 25 kg | 50 kg | ||
| Power Consumption | 150 W | 250 W | 500 W | 1500 W |
| Materials Processed |
Carbon steel and other ferrous metals Titanium Stainless steel Copper and alloys Paper and cardboard Rubber Metal cans Ceramics Electronic components Jewerly/Clock mechanisms |
|||
| Delivery Set |
Enclosure with emitter Scanner head Controller Power cord Chiller (for 300 W power) |
|||
Got any questions? Schedule a consultation and a demo.

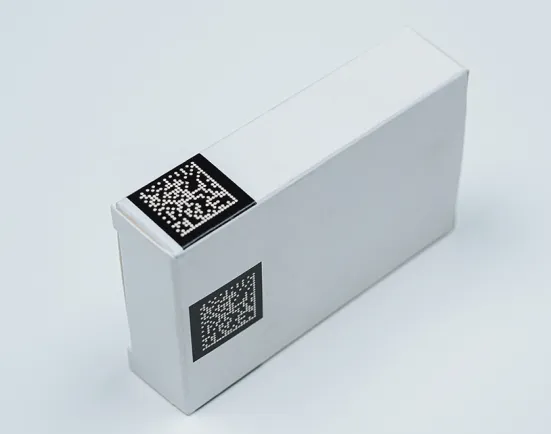

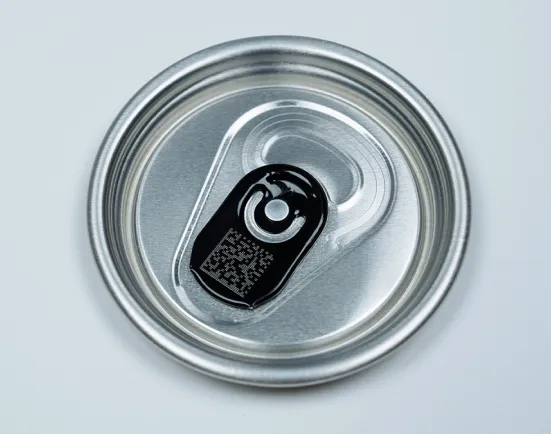

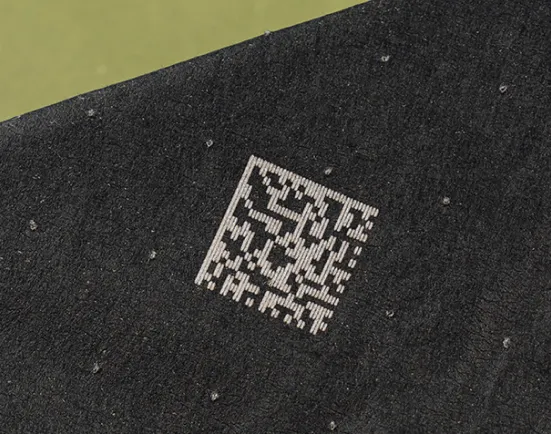

Application Samples
